Viwinco Patented Tilt-N-Lock

Viwinco Tilt-n-Lock Image - DH S-Series Windows

Your windows should enhance your view, not hinder it with unnecessary hardware. Our Viwinco patented Tilt-n-Lock technology provides an unobtrusive solution to window operation, standard on Cambridge, S-Series and OceanView hung windows. The Viwinco patented Tilt-n-Lock technology revolutionizes window operation on hung windows. While housing the locking mechanism in the meeting rail of the sash, the Tilt-n-Lock does away with traditional tilt latches in favor of single-handed operation through the use of the locking mechanism. The three locking positions are used to indicate the status of the window. At the 0-degree position, the sash is securely locked, and the tilt latches are tightly secured into the jambs. At 150-degrees, the tilt latches are still engaged in the jambs, but the sashes are unlocked allowing the sash to be lifted. At 180-degrees the hidden tilt latches are disengaged from the jambs allowing tilt in window operation for easy maintenance.

Viwinco Tilt-n-Lock - Logo

Standard on S-Series, Cambridge and OceanView Impact single- and double-hung windows



Exclusive Technology:

  • One-handed operation
  • Clean sightlines
  • Easier cleaning

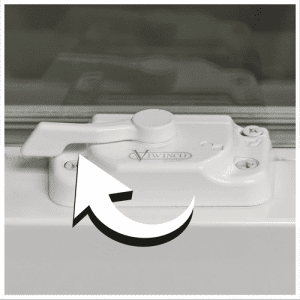

Viwinco Tilt-n-Lock - locked position

Locked Position

Sash is securely locked. Hidden tilt latches are housed in sash channel for added strength.

Viwinco Tilt-n-Lock - unlocked position

Unlocked Position

At the 150-degree position, the hidden tilt latches are engaged with the jamb, and the sash can be lifted.

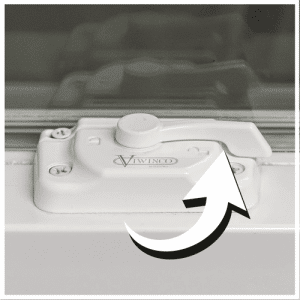

Viwinco Tilt-n-Lock - tilt position

Tilt-In Position

When the lever is moved to 180 degrees, the hidden tilt latches clear the jamb channel, allowing the user to easily tilt the sash inward.

Tilt-n-Lock
S-SERIES
NEW CONSTRUCTION
STANDARD on Hung Windows
NOT AVAILABLE for sliding, fixed, or hinged windows
CAMBRIDGE
REPLACEMENT
STANDARD on Hung Windows
NOT AVAILABLE for sliding, fixed, or hinged windows
EDGEMONT
REPLACEMENT
NOT AVAILABLE
OCEANVIEW
IMPACT NEW CONSTRUCTION & REPLACEMENT
STANDARD on Hung Windows
NOT AVAILABLE for sliding, fixed, or hinged windows
